High Flow Concentrators (>8L)

 FOR MORE INFORMATION, GIVE ONE OF OUR SPECIALIST CUSTOMER SERVICE ADVISORS A CALL ON 0345 100 0084

IN STOCK

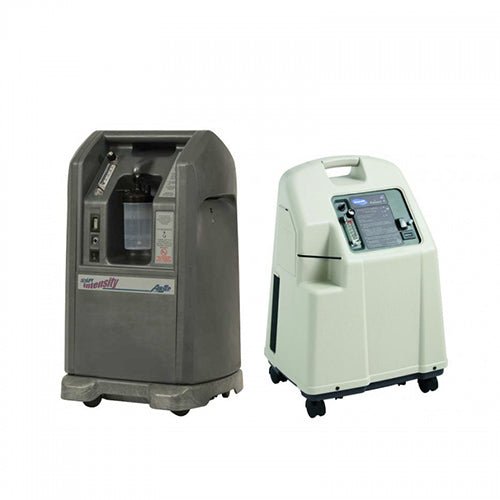

With the NewLife Intensity 10, high pressure and maximum flow in one concentrator means that your most challenging oxygen applications can be met. Even set-ups for two patients are easily achieved through the use of NewLife Intensity 10 - the new, true 10 LPM unit.

Special applications, such as with the use of jet nebulizers, venti masks, and medication nebulization with oxygen, are possible for in-home care, as well as in acute care environments, the Intensity 10 Litre is also ideal for use with EWOT (excercise with oxygen training) utilising the powerful flow from NewLife Intensity 10. This concentrator serves as the driving force behind high flow oxygen applications that might otherwise depend on external compressors and other equipment to meet a variety of more complex respiratory patient needs. Eliminate costly gas or liquid oxygen deliveries for high flow patients.

Product Specifications

NewLife Elite NewLife Intensity Series (8 and 10 LPM)
Oxygen Concentration* 1–3 LPM: 95.5% - 92.0% 8 LPM: 2-7 LPM: 92%±3; 8 LPM: 90%±3  4 LPM: 92% ±3% 10 LPM: 2-9 LPM: 92%±3; 10 LPM: 90%±3    5 LPM: 90% ±3%

Oxygen Outlet Pressure  20 psig (138 kPa)
Dimensions 28.5 in. H x 15.7 in. W x 14.5 in. D 27.5 in. H x 16.5 in. W x 14.5 in. D 72.4 cm H x 40.0 cm W x 36.8 cm D (69.9 cm H x 41.9 cm W x 36.8 cm D)
Weight  54 lb; shipping weight – 64 lb 8 LPM: 54 lb (24.5 kg)     (24.5 kg; shipping weight – 29 kg) 10 LPM: 58 lb (26.3 kg)
Power 120 V, 60 Hz, 4 amps 8 LPM: 120 V, 60 Hz; 220-240 V, 50 Hz; 220-240 60 Hz 220–240 V, 50 Hz, 2 amps 10 LPM: 120 V, 60 Hz; 220-240 V, 50 Hz  220 V, 60 Hz, 2 amps
Power Consumption 350 watts 8 LPM: 410 watts 10 LPM: 590 watts
Alarms Battery test, Power failure, High and low pressure,  Battery test, High Temperature, Power failure, High and low Low concentration (with optional oxygen monitor) pressure, Low concentration (with optional oxygen monitor)

*Based on an atmospheric pressure of 14.7 psia (101 kPa) at 70° F (21 °C). Operating unit outside of operational temperature range can affect performance.

MULTI LANGUAGE BROCHURE

Newlife brochure in English Click Here

Newlife brochure in French click Here

Newlife brochure in German click Here

Newlife brochure in Spanish click Here

Newlife brochure in Italian click Here

Features and benefits

• High Oxygen concentration levels over the whole flow range
• Variable Flow rate up to 5 l/min
• OSD Sensor for continuously monitoring Oxygen levels
• Visual and audible alarms for low Oxygen levels, power failure,pressure drop and service required
• Take away bubble humidifier for placing in house where needed
• Service and maintenance friendly
• Data output socket compatible with PC, Notebook or Smart-Track™ remote for diagnostic analysis of the unit
• New maintenance free innovative rotary valve
• Intelligent power management system utilises turn-down® technology providing less power consumption below 2 l/min flowrates
• Low noise, quiet operation
• Weighing only 16.3 kg the Compact 5 is our smallest and lightest 5 litre concentrator
• Easy to operate, robust design
• Moulded handgrip for easy transportation and free moveable roller base for maximum manoeuvrability
• Circuit breaker with reset function
• Easy to view hour meter

Available Optional Extras

• Oxygen analyzer ”Handi™” – Small, lightweight and easy to operate handheld oxygen analyzer

• Smart-Track™ Remote – for easy diagnostic analysis of the unit

• Paediatric Flowmeter – Flowrange 0.125 - 2.0 l/min or 0.02 - 0.8 l/min Smart-Track™ Remote

SPECIFICATIONS

Dimension (H x W x D) 62.2 x 34.2 x 30.4 cm
Weight 16.3 kg
Flowrate 0.5 to 5 l / min
Oxygen Concentration at 0.5 - 5 l / min 93% ± 3 %
Electrical Requirements 230 V, 50 Hz

Power Consumption approx. 290 Watt at 2 l/min.approx. 312 Watt at 5 l/min.

Classification II Type B
